A new standard for efficient and vivid advertising!
효율적이고 선명한 광고의 새로운 기준! LED 디지털 전광판
효율적이고 선명한 디지털 기술로 광고의 새로운 기준을 제시하며, 고객의 메시지를 더 멀리, 더 정확하게 전달합니다.
SMD 방식의 한계를 뛰어넘는 CHIP ON BOARD (COB) 기술을 통해 더 밝고, 더 견고한 디스플레이를 실현했습니다. COB는 발광 칩을 PCB 기판에 직접 집적하여 더 높은 신뢰성과 발광 효율, 뛰어난 보호 성능을 제공합니다.
COB 스탠드 배너 (실내용)
COB Stand Banner
Pixel pitch
P1.25
P1.53
P1.86
Brightness
600cd
600cd
600cd
Module size(mm)
320 X 160
320 X 160
320 X 160
Module resolution(px)
258 X 128
208 X 104
172 X 86
Module pixel
640,000
422,753
288,906
Refresh rate
≥3840Hz
≥3840Hz
≥3840Hz
Unit resolution(PX)
512 X 1,408
416 X 1,144
344 X 946
Module configuration
2 X 11
2 X 11
2 X 11
Screen Size
640 X 1,760
640 X 1,760
640 X 1,760
Main unit
646 X 1,934 X 80
646 X 1,934 X 80
646 X 1,934 X 80
Viewing angle
160° (H, V)
160° (H, V)
160° (H, V)
Working temperature
-30~60℃
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
10~90%
Maximum power
≤525W
≤460W
≤390KW
Average power
≤175W
≤155W
≤130W
Frame material
EGI Steel
EGI Steel
EGI Steel
Maintenance
Front
Front
Front
Life span(H)
100,000
100,000
100,000
COB 와이드 스탠드 배너 (실내용)
COB Wide Stand Banner
Pixel pitch
P1.25
P1.53
P1.86
Brightness
600cd
600cd
600cd
Module size(mm)
320 X 160
320 X 160
320 X 160
Module resolution(px)
258 X 128
208 X 104
172 X 86
Module pixel
640,000
422,753
288,906
Refresh rate
≥3840Hz
≥3840Hz
≥3840Hz
Unit resolution(PX)
1,024 X 1,408
832 X 1,144
688 X 946
Module configuration
4X11
4X11
4X11
Screen Size
1,280 X 1,760
1,280 X 1,760
1,280 X 1,760
Main Unit
1,286 X 1,934 X 80
1,286 X 1,934 X 80
1,286 X 1,934 X 80
Viewing angle
160° (H, V)
160° (H, V)
160° (H, V)
Working temperature
-30~60℃
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
10~90%
Maximum power
≤1,050W
≤920W
≤780KW
Average power
≤350W
≤310W
≤260W
Frame material
EGI Steel
EGI Steel
EGI Steel
Maintenance
Front
Front
Front
Life span(H)
100,000
100,000
100,000
COB 하프 스탠드 배너 (실내용)
COB Half Stand Banner
Pixel pitch
P1.25
P1.53
P1.86
Brightness
600cd
600cd
600cd
Module size(mm)
320 X 160
320 X 160
320 X 160
Module resolution(px)
258 X 128
208 X 104
172 X 86
Module pixel
640,000
422,753
288,906
Refresh rate
≥3840Hz
≥3840Hz
≥3840Hz
Unit resolution(PX)
512 X 896
416 X 728
344 X 602
Module configuration
2 X 7
2 X 7
2 X 7
Screen Size
640 X 1,120
640 X 1,120
640 X 1,120
Main Unit
646 X 1,294 X 80
646 X 1,294 X 80
646 X 1,294 X 80
Viewing angle
160° (H, V)
160° (H, V)
160° (H, V)
Working temperature
-30~60℃
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
10~90%
Maximum power
≤335W
≤295W
≤250KW
Average power
≤115W
≤100W
≤85W
Frame material
EGI Steel
EGI Steel
EGI Steel
Maintenance
Front
Front
Front
Life span(H)
100,000
100,000
100,000
이동과 설치가 자유로운 스탠드형 디지털 전광판은 어디서든 효과적인 콘텐츠 전달을 가능하게 합니다. 세련된 디자인과 선명한 화질로 시선을 사로잡으며, 매장, 전시회, 공공시설 등 다양한 공간에서 맞춤형 메시지를 손쉽게 연출할 수 있습니다.
SMD 스탠드 배너 (실내용)
SMD Stand Banner
Pixel pitch
P 3
Brightness
800cd
Module size(mm)
192 X 192
Module resolution(px)
64 X 64
Module pixel
111,111
Refresh rate
≥3840Hz
Unit resolution(PX)
192 X 576
Module configuration
3 X 9
Screen Size
576 X 1,728
Main Unit
580 X 1,920 X 80
Viewing angle
(H)160° , (V)140°
Working temperature
-30~60℃
Humidity
10~90%
Maximum power
≤720W
Average power
≤300W
Frame material
EGI Steel
Maintenance
Front
Life span(H)
100,000
SMD 와이드 스탠드 배너 (실내용)
SMD Wide Stand Banner
Pixel pitch
P 3
Brightness
800cd
Module size(mm)
192 X 192
Module resolution(px)
64 X 64
Module pixel
111,111
Refresh rate
≥3840Hz
Unit resolution(PX)
320 X 576
Module configuration
5 X 9
Screen Size
960 X 1,728
Main Unit
966 X 1,920 X 80
Viewing angle
(H)160° , (V)140°
Working temperature
-30~60℃
Humidity
10~90%
Maximum power
≤1,080W
Average power
≤450W
Frame material
EGI Steel
Maintenance
Front
Life span(H)
100,000
SMD 스탠드 배너 (옥외용)
SMD Stand Banner
Pixel pitch
P 3
Brightness
5,000cd
Module size(mm)
192 X 192
Module resolution(px)
64 X 64
Module pixel
111,111
Refresh rate
≥3840Hz
Unit resolution(PX)
256 X 576
Module configuration
4 X 9
Screen Size
768 X 1,728
Main Unit
773 X 1,920 X 150
Viewing angle
(H)160° , (V)140°
Working temperature
-30~60℃
Humidity
10~90%
Maximum power
≤1,260W
Average power
≤600W
Frame material
SUS Steel
Maintenance
Back
Life span(H)
100,000
SMD 하프 스탠드 배너 (옥외용)
SMD Half Stand Banner
Pixel pitch
P 3
Brightness
5,000cd
Module size(mm)
192 X 192
Module resolution(px)
64 X 64
Module pixel
111,111
Refresh rate
≥3840Hz
Unit resolution(PX)
192 X 320
Module configuration
3 X 5
Screen Size
576 X 960
Main Unit
581 X 1,154X 150
Viewing angle
(H)160° , (V)140°
Working temperature
-30~60℃
Humidity
10~90%
Maximum power
≤530W
Average power
≤250W
Frame material
SUS Steel
Maintenance
Back
Life span(H)
100,000
SMD A형 스탠드 배너 (옥외용)
SMD A Stand Banner
Product
Large
Small
Pixel pitch
P2.5
P2.5
Brightness
5,000cd
5,000cd
Module size(mm)
320 X 160
320 X 160
Module resolution(px)
128 X 64
128 X 64
Module pixel
160,000
160,000
Refresh rate
≥3840Hz
≥3840Hz
Unit resolution(PX)
256 X 384
192 X 256
Module configuration
2 X 6
3 X 2
Screen Size
640 X 960
480 X 640
Main unit
701 X 1,060 X 72
542 X 740 X 70
Viewing angle
(H)160° , (V)140°
(H)160° , (V)140°
Working temperature
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
Maximum power
≤620W
≤310W
Average power
≤310W
≤155W
Frame material
SUS Steel
Al Steel
Maintenance
Back
Back
Life span(H)
100,000
100,000
SMD 방식의 한계를 뛰어넘는 CHIP ON BOARD (COB) 기술을 통해 더 밝고, 더 견고한 디스플레이를 실현했습니다. COB는 발광 칩을 PCB 기판에 직접 집적하여 더 높은 신뢰성과 발광 효율, 뛰어난 보호 성능을 제공합니다.

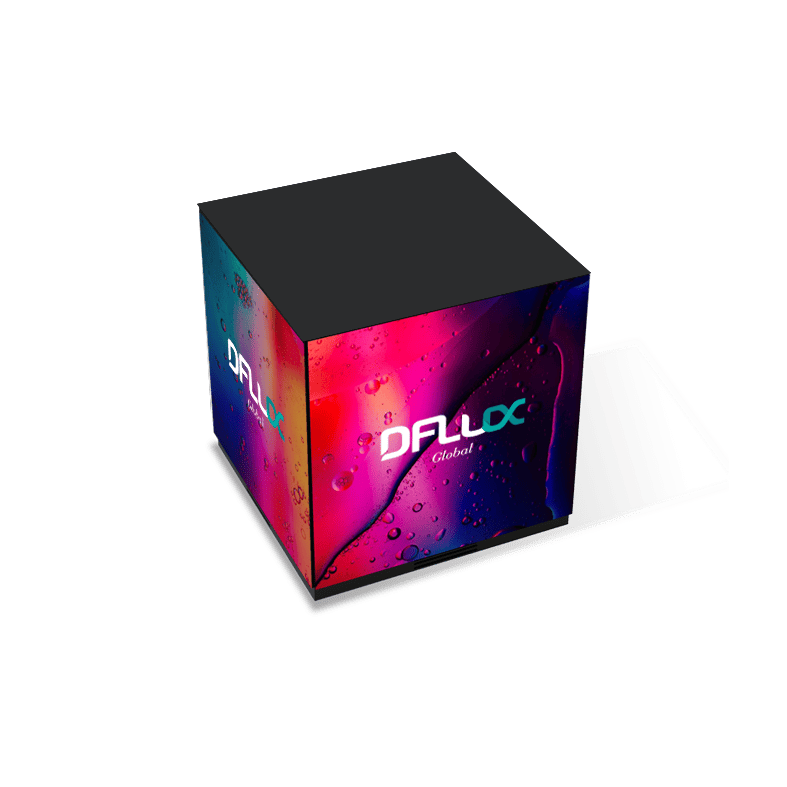

COB 전시 큐브 5면 (실내용)
COB Cube Exhibition Stand-5Sides
Pixel pitch
P1.25
P1.53
P1.86
Brightness
600cd
600cd
600cd
Module size(mm)
320 X 160
320 X 160
320 X 160
Module resolution(px)
258 X 128
208 X 104
172 X 86
Module pixel
640,000
422,753
288,906
Refresh rate
≥3840Hz
≥3840Hz
≥3840Hz
Unit resolution(PX)
1,280 X 256
1,040 X 208
860 X 172
Module configuration
5 X 2
5 X 2
5 X 2
Screen Size
1,600 X 320
1,600 X 320
1,600 X 320
Main unit
330 X 330 X 347
330 X 330 X 347
330 X 330 X 347
Viewing angle
160° (H, V)
160° (H, V)
160° (H, V)
Working temperature
-30~60℃
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
10~90%
Maximum power
≤240W
≤210W
≤180KW
Average power
≤80W
≤70W
≤60W
Frame material
EGI Steel
EGI Steel
EGI Steel
Maintenance
Front
Front
Front
Life span(H)
100,000
100,000
100,000
COB 전시 큐브 4면 (실내용)
COB Cube Exhibition Stand-4Sides
Pixel pitch
P1.25
P1.53
P1.86
Brightness
600cd
600cd
600cd
Module size(mm)
320 X 160
320 X 160
320 X 160
Module resolution(px)
258 X 128
208 X 104
172 X 86
Module pixel
640,000
422,753
288,906
Refresh rate
≥3840Hz
≥3840Hz
≥3840Hz
Unit resolution(PX)
1,024 X 256
832 X 208
688 X 172
Module configuration
4 X 2
4 X 2
4 X 2
Screen Size
1,280 X 320
1,280 X 320
1,280 X 320
Main unit
330 X 330 X 347
330 X 330 X 347
330 X 330 X 347
Viewing angle
160° (H, V)
160° (H, V)
160° (H, V)
Working temperature
-30~60℃
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
10~90%
Maximum power
≤195W
≤170W
≤145KW
Average power
≤65W
≤55W
≤50W
Frame material
EGI Steel
EGI Steel
EGI Steel
Maintenance
Front
Front
Front
Life span(H)
100,000
100,000
100,000

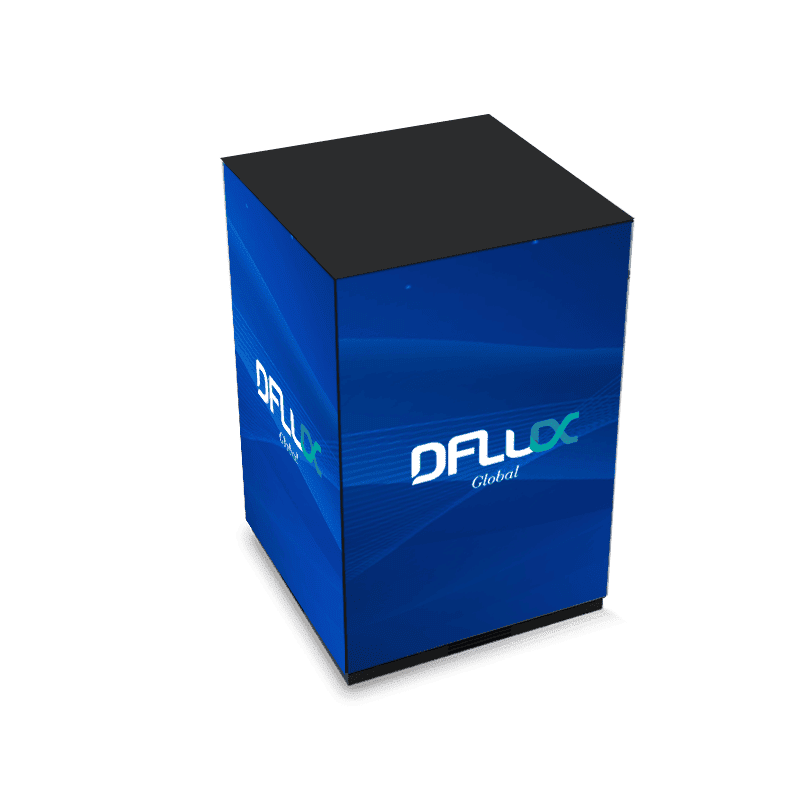

COB 하이 전시큐브 5 (실내용)
COB High Cube Exhibition Stand-5Sides
Pixel pitch
P1.25
P1.53
P1.86
Brightness
600cd
600cd
600cd
Module size(mm)
320 X 160
320 X 160
320 X 160
Module resolution(px)
258 X 128
208 X 104
172 X 86
Module pixel
640,000
422,753
288,906
Refresh rate
≥3840Hz
≥3840Hz
≥3840Hz
Unit resolution(PX)
1,280 X 384
1,040 X 312
860 X 258
Module configuration
5 X 3
5 X 3
5 X 3
Screen Size
1,600 X 480
1,600 X 480
1,600 X 480
Main unit
330 X 330 X 495
330 X 330 X 495
330 X 330 X 495
Viewing angle
160° (H, V)
160° (H, V)
160° (H, V)
Working temperature
-30~60℃
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
10~90%
Maximum power
≤360W
≤315W
≤265KW
Average power
≤120W
≤105W
≤90W
Frame material
EGI Steel
EGI Steel
EGI Steel
Maintenance
Front
Front
Front
Life span(H)
100,000
100,000
100,000
COB 하이 전시큐브 4 (실내용)
COB High Cube Exhibition Stand-4Sides
Pixel pitch
P1.25
P1.53
P1.86
Brightness
600cd
600cd
600cd
Module size(mm)
320 X 160
320 X 160
320 X 160
Module resolution(px)
258 X 128
208 X 104
172 X 86
Module pixel
640,000
422,753
288,906
Refresh rate
≥3840Hz
≥3840Hz
≥3840Hz
Unit resolution(PX)
1,024 X 384
832 X 312
688 X 258
Module configuration
4 X 3
4 X 3
4 X 3
Screen Size
1,280 X 480
1,280 X 480
1,280 X 480
Main unit
330 X 330 X 495
330 X 330 X 495
330 X 330 X 495
Viewing angle
160° (H, V)
160° (H, V)
160° (H, V)
Working temperature
-30~60℃
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
10~90%
Maximum power
≤290W
≤250W
≤215KW
Average power
≤95W
≤85W
≤70W
Frame material
EGI Steel
EGI Steel
EGI Steel
Maintenance
Front
Front
Front
Life span(H)
100,000
100,000
100,000
360° 다각도 노출로 시선을 자연스럽게 집중시키며, 공간의 한계를 넘어 창의적인 연출을 가능하게 합니다. 큐브형 디지털 전광판은 어느 각도에서든 선명한 콘텐츠를 제공해 더욱 강렬한 시각적 효과를 선사하며, 매장 디스플레이, 전시회, 공공시설 등 다양한 공간에서 차별화된 메시지 전달이 가능합니다.
SMD 큐브 벽걸이 (실내 or 옥외용)
SMD Cube Wall Mountable
Product
384 (Indoor)
384 (Outdoor)
576 (Indoor)
576 (Outdoor)
Pixel pitch
P3
P3
P3
P3
Brightness
800cd
5000cd
800cd
5000cd
Module size(mm)
192 X 192
192 X 192
192 X 192
192X192
Module resolution(px)
64 X 64
64 X 64
64 X 64
64 X 64
Module pixel
111,111
111,111
111,111
111111
Refresh rate
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
Unit resolution(PX)
512 X 128
512 X 128
768 X 192
768 X 192
Module configuration
8 X 2
8 X 2
12 X 3
12 X 3
Screen Size
1,536 X 384
1,536 X 384
2,304 X 576
2,304 X 576
Main unit
389 X 389 X 510
389 X 389 X 510
581 X 581 X 703
581 X 581 X 703
Viewing angle
160° (H, V)
160° (H, V)
160° (H, V)
160° (H, V)
Working temperature
-30~60℃
-30~60℃
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
10~90%
10~90%
Maximum power
≤390W
≤565W
≤870W
≤1,270W
Average power
≤160W
≤270W
≤360W
≤600W
Frame material
EGI Steel
SUS Steel
EGI Steel
SUS Steel
Maintenance
Front
Back
Front
Back
Life span(H)
100,000
100,000
100,000
100,000
SMD 큐브 행잉 (실내 or 옥외용)
SMD Cube Hanging
Product
384 (Indoor)
384 (Outdoor)
576 (Indoor)
576 (Outdoor)
Pixel pitch
P3
P3
P3
P3
Brightness
800cd
5000cd
800cd
5000cd
Module size(mm)
192 X 192
192 X 192
192 X 192
192X192
Module resolution(px)
64 X 64
64 X 64
64 X 64
64 X 64
Module pixel
111,111
111,111
111,111
111111
Refresh rate
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
Unit resolution(PX)
640 X 128
640 X 128
960 X 192
960 X 192
Module configuration
10 X 2
10 X 2
15 X 3
15 X 3
Screen Size
1,920 X 384
1,920 X 384
2,880 X 576
2,880 X 576
Main unit
394 X 394 X 512
394 X 394 X 512
585 X 585 X 705
585 X 585 X 705
Viewing angle
160° (H, V)
160° (H, V)
160° (H, V)
160° (H, V)
Working temperature
-30~60℃
-30~60℃
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
10~90%
10~90%
Maximum power
≤480W
≤710W
≤1,080W
≤1,580W
Average power
≤200W
≤340W
≤450W
≤750W
Frame material
EGI Steel
SUS Steel
EGI Steel
SUS Steel
Maintenance
Front
Back
Front
Back
Life span(H)
100,000
100,000
100,000
100,000
SMD 큐브 스탠드 (실내 or 옥외용)
SMD Cube Stand
Product
384 (Indoor)
384 (Outdoor)
576 (Indoor)
576 (Outdoor)
Pixel pitch
P3
P3
P3
P3
Brightness
800cd
5000cd
800cd
5000cd
Module size(mm)
192 X 192
192 X 192
192 X 192
192X192
Module resolution(px)
64 X 64
64 X 64
64 X 64
64 X 64
Module pixel
111,111
111,111
111,111
111111
Refresh rate
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
Unit resolution(PX)
640 X 128
640 X 128
960 X 192
960 X 192
Module configuration
10 X 2
10 X 2
15 X 3
15 X 3
Screen Size
1,920 X 384
1,920 X 384
2,880 X 576
2,880 X 576
Main unit
389 X 389 X 1,103
389 X 389 X 1,103
581 X 581 X 1,408
581 X 581 X 1,408
Viewing angle
160° (H, V)
160° (H, V)
160° (H, V)
160° (H, V)
Working temperature
-30~60℃
-30~60℃
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
10~90%
10~90%
Maximum power
≤480W
≤710W
≤1,080W
≤1,580W
Average power
≤200W
≤340W
≤450W
≤750W
Frame material
EGI Steel
SUS Steel
EGI Steel
SUS Steel
Maintenance
Front
Back
Front
Back
Life span(H)
100,000
100,000
100,000
100,000
SMD 하이 큐브 스탠드 (옥외용)
SMD High Cube Stand
Pixel pitch
P 3
Brightness
5,000cd
Module size(mm)
192 X 192
Module resolution(px)
64 X 64
Module pixel
111,111
Refresh rate
≥3840Hz
Unit resolution(PX)
384 X 256
Module configuration
6 X 4
Screen Size
1,152 X 768
Main Unit
396 X 396 X 1,387
Viewing angle
(H)160° , (V)140°
Working temperature
-30~60℃
Humidity
10~90%
Maximum power
≤845W
Average power
≤400W
Frame material
SUS Steel
Maintenance
Back
Life span(H)
100,000
SMD 하이 큐브 벽걸이 (옥외용)
SMD High Cube Wall-Mounted
Product
2Sides
3Sides
Pixel pitch
P3
P3
Brightness
5,000cd
5,000cd
Module size(mm)
192 X 192
192 X 192
Module resolution(px)
64 X 64
64 X 64
Module pixel
111,111
111,111
Refresh rate
≥3840Hz
≥3840Hz
Unit resolution(PX)
320 X 128
320 X 192
Module configuration
5 X 2
5 X 3
Screen Size
960 X 384
960 X 576
Main unit
1,260 X 198 X 297
1,260 X 198 X 297
Viewing angle
(H)160° , (V)140°
(H)160° , (V)140°
Working temperature
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
Maximum power
≤355W
≤530W
Average power
≤170W
≤250W
Frame material
SUS Steel
Al Steel
Maintenance
Back
Back
Life span(H)
100,000
100,000
SMD 쇼케이스 큐브 스탠드 (실내용)
SMD Showcase Cube Exhibition Stand
Pixel pitch
P 2.5
Brightness
5,000cd
Module size(mm)
320 X 160
Module resolution(px)
128 X 64
Module pixel
160,000
Refresh rate
≥3840Hz
Unit resolution(PX)
512 X 256
Module configuration
4 X 4
Screen Size
1,280 X 640
Main Unit
331 X 331 X 1,043
Viewing angle
(H)160° , (V)140°
Working temperature
-30~60℃
Humidity
10~90%
Maximum power
≤820W
Average power
≤410W
Frame material
EGI Steel
Maintenance
Back
Life span(H)
100,000
GOB 미니 큐브 스탠드 (실내용)
GOB Minimum Cube Exhibition Stand
Pixel pitch
P 1.53
Brightness
680cd
Module size(mm)
320 X 160
Module resolution(px)
208 X 104
Module pixel
422,753
Refresh rate
≥3840Hz
Unit resolution(PX)
832 X 104
Module configuration
4 X 1
Screen Size
640 X 320
Main Unit
167 X 167 X 375
Viewing angle
(H)160° , (V)140°
Working temperature
-30~60℃
Humidity
10~90%
Maximum power
≤165W
Average power
≤65W
Frame material
EGI Steel
Maintenance
Back
Life span(H)
100,000
효율적인 공간 활용, 선명한 화면, 원격 관리의 편리함을 갖춘 스마트한 광고 및 정보 전달 솔루션입니다. 소매업, 공공기관, 기업, 교육기관 등 다양한 환경에서 최적의 디지털 디스플레이로 활용할 수 있습니다.
SMD 벽부착 주문제작 (실내용)
SMD Wall-mountable
Pixel pitch
P 1.25
P 1.53
P 1.86
P 2
P 2.5
P 3.076
Brightness
680cd
680cd
680cd
800cd
800cd
800cd
Module size(mm)
320 X 160
320 X 160
320 X 160
320 X 160
320 X 160
320 X 160
Module resolution(px)
256 X 128
208 X 104
172 X 86
160 X 80
128 X 64
104 X 52
Module pixel
640,000
422,500
289,444
250,000
160,000
105,625
Refresh rate
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
Viewing angle
(H)160°, (V)140°
(H)160°, (V)140°
(H)160°, (V)140°
(H)160°, (V)140°
(H)160°, (V)140°
(H)160°, (V)140°
Working temperature
-30~60℃
-30~60℃
-30~60℃
-30~60℃
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
10~90%
10~90%
10~90%
10~90%
Maximum power(㎡)
≤800W
≤800W
≤650W
≤650W
≤650W
≤650W
Average power(㎡)
≤300W
≤300W
≤285W
≤270W
≤270W
≤270W
Frame material
EGI Steel
EGI Steel
EGI Steel
EGI Steel
EGI Steel
EGI Steel
Maintenance
Front
Front
Front
Front
Front
Front
Life span(H)
100,000
100,000
100,000
100,000
100,000
100,000
SMD 벽부착 주문제작 (옥외용)
SMD Wall-mountable
Pixel pitch
P 2.5
P 3.076
P 4
P 5
P 8
P 10
Brightness
5,000cd
5,000cd
5,000cd
5,000cd
5,000cd
5,000cd
Module size(mm)
320 X 160
320 X 160
320 X 160
320 X 160
320 X 160
320 X 160
Module resolution(px)
128 X 64
104 X 52
80 X 40
64 X 32
40X 20
32 X 16
Module pixel
160,000
105,625
62,500
40,000
15,625
10,000
Refresh rate
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
Viewing angle
(H)160°, (V)140°
(H)160°, (V)140°
(H)160°, (V)140°
(H)160°, (V)140°
(H)160°, (V)140°
(H)160°, (V)140°
Working temperature
-30~60℃
-30~60℃
-30~60℃
-30~60℃
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
10~90%
10~90%
10~90%
10~90%
Maximum power(㎡)
≤1000W
≤950W
≤900W
≤800W
≤600W
≤600W
Average power(㎡)
≤500W
≤450W
≤450W
≤400W
≤300W
≤300W
Frame material
SUS Steel
SUS Steel
SUS Steel
SUS Steel
SUS Steel
SUS Steel
Maintenance
back
back
back
back
back
back
Life span(H)
100,000
100,000
100,000
100,000
100,000
100,000
SMD 행잉 (옥외용)
SMD Hanging
Pixel pitch
P 2.5
Brightness
5,000cd
Module size(mm)
320 X 160
Module resolution(px)
128 X 64
Module pixel
160,000
Refresh rate
≥3840Hz
Unit resolution(PX)
256 X 448
Module configuration
2 X 7
Screen Size
640 X 1,120
Main Unit
645 X 1,125 X 100
Viewing angle
(H)160° , (V)140°
Working temperature
-30~60℃
Humidity
10~90%
Maximum power
≤720W
Average power
≤360W
Frame material
EGI Steel
Maintenance
Front
Life span(H)
100,000
양쪽 면에서 다양한 시청 효과를 제공하여 지나가는 고객들의 눈길을 사로잡으며, 선명한 이미지와 생동감 넘치는 색상을 표현할 수 있어, 매장의 브랜드 이미지와 메시지를 효과적으로 전달합니다.
Product
Large
Small
Pixel pitch
P 3
P 3.91
Brightness
5,000cd
5,000cd
Module size(mm)
192 X 192
250 X 250
Module resolution(px)
64 X 64
64 X 64
Module pixel
111,111
65,536
Refresh rate
≥3840Hz
≥3840Hz
Unit resolution(PX)
256 X 128
256 X 128
Module configuration
4 X 2
4 X 2
Screen Size
768 X 384
1,000 X 500
Main unit
500 X 389 X 163
725 X 613 X 163
Viewing angle
(H)160° , (V)140°
(H)160° , (V)140°
Working temperature
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
Maximum power
≤290W
≤400W
Average power
≤135W
≤200W
Frame material
SUS Steel
SUS Steel
Maintenance
Back
Back
Life span(H)
100,000
100,000
SMD 돌출 (실내용)
SMD Protruding
Pixel pitch
P 3
Brightness
800cd
Module size(mm)
192 X 192
Module resolution(px)
64 X 64
Module pixel
111,111
Refresh rate
≥3840Hz
Unit resolution(PX)
256 X 128
Module configuration
4 X 2
Screen Size
768 X 384
Main Unit
389 X 500 X 85
Viewing angle
(H)160° , (V)140°
Working temperature
-30~60℃
Humidity
10~90%
Maximum power
≤200W
Average power
≤80W
Frame material
EGI Steel
Maintenance
Front
Life span(H)
100,000
SMD 돌출 (옥외용)
SMD Protruding
Product
Large
Small
Pixel pitch
P 3
P 3.91
Brightness
5,000cd
5,000cd
Module size(mm)
192 X 192
250 X 250
Module resolution(px)
64 X 64
64 X 64
Module pixel
111,111
65,536
Refresh rate
≥3840Hz
≥3840Hz
Unit resolution(PX)
256 X 128
256 X 128
Module configuration
4 X 2
4 X 2
Screen Size
768 X 384
1,000 X 500
Main unit
500 X 389 X 163
725 X 613 X 163
Viewing angle
(H)160° , (V)140°
(H)160° , (V)140°
Working temperature
-30~60℃
-30~60℃
Humidity
10~90%
10~90%
Maximum power
≤290W
≤400W
Average power
≤135W
≤200W
Frame material
SUS Steel
SUS Steel
Maintenance
Back
Back
Life span(H)
100,000
100,000
